Features
LUMINOUS LED LIGHTS

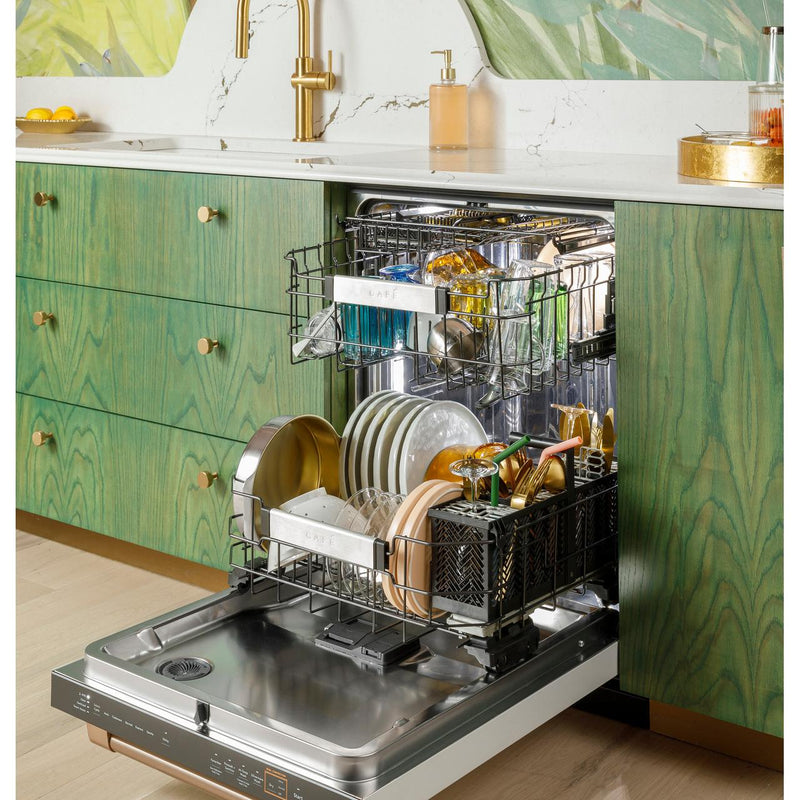

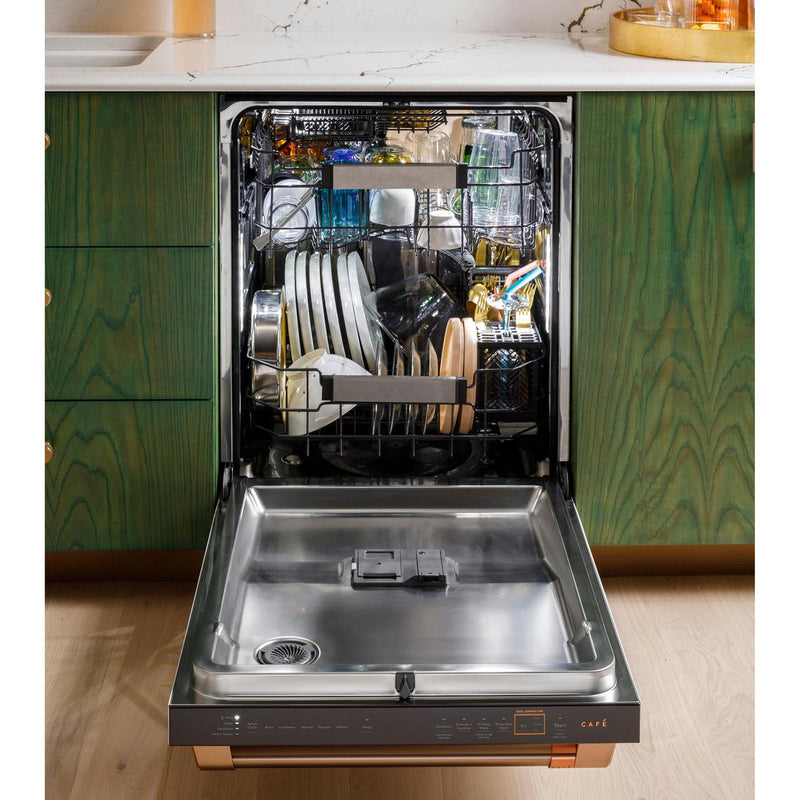

Shine bright with uniform LED lighting throughout this well lit dishwasher for simplified loading and unloading.
39 DBA DISHWASHER
Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 39 dBA dishwasher.

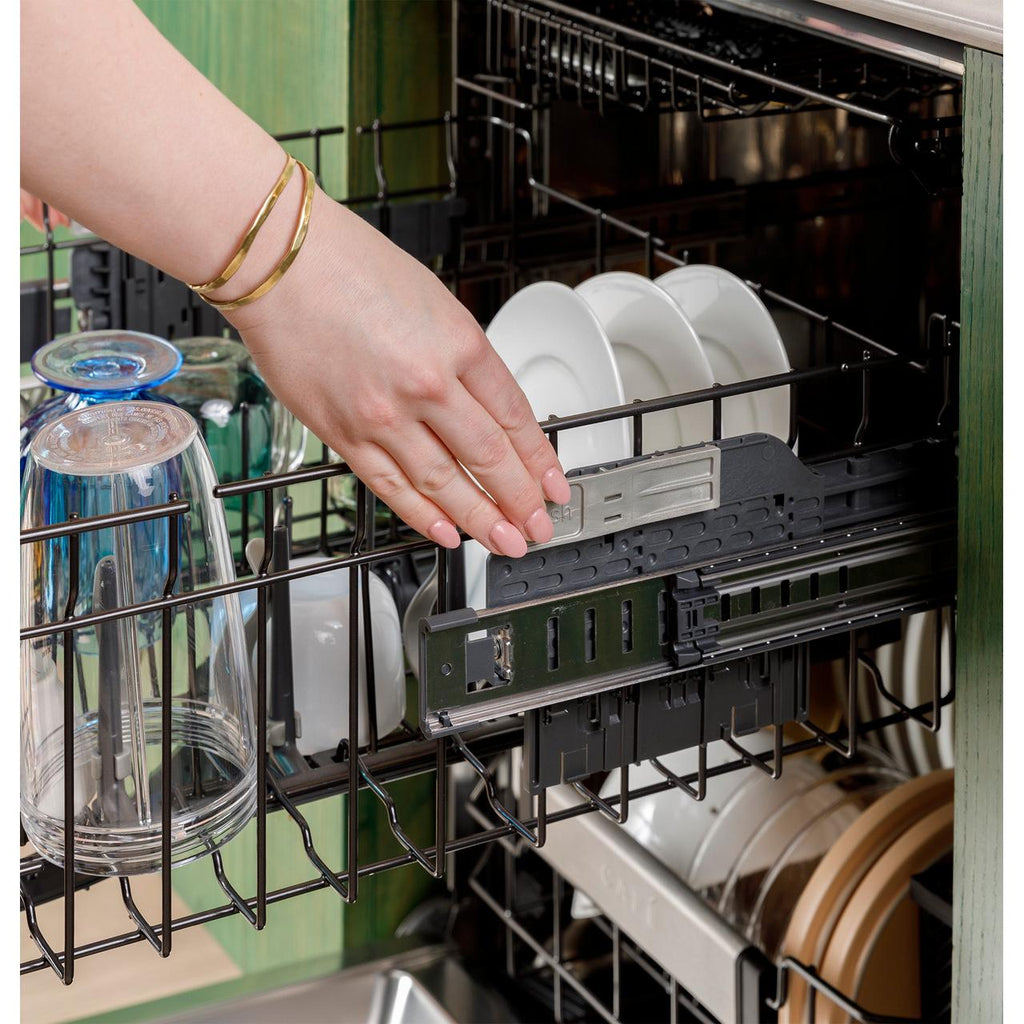

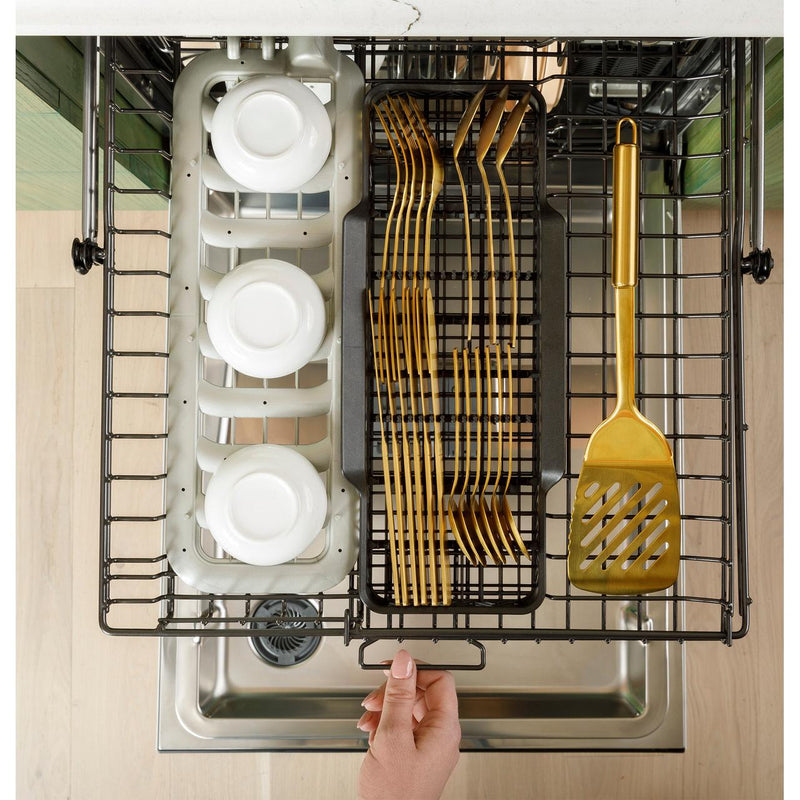

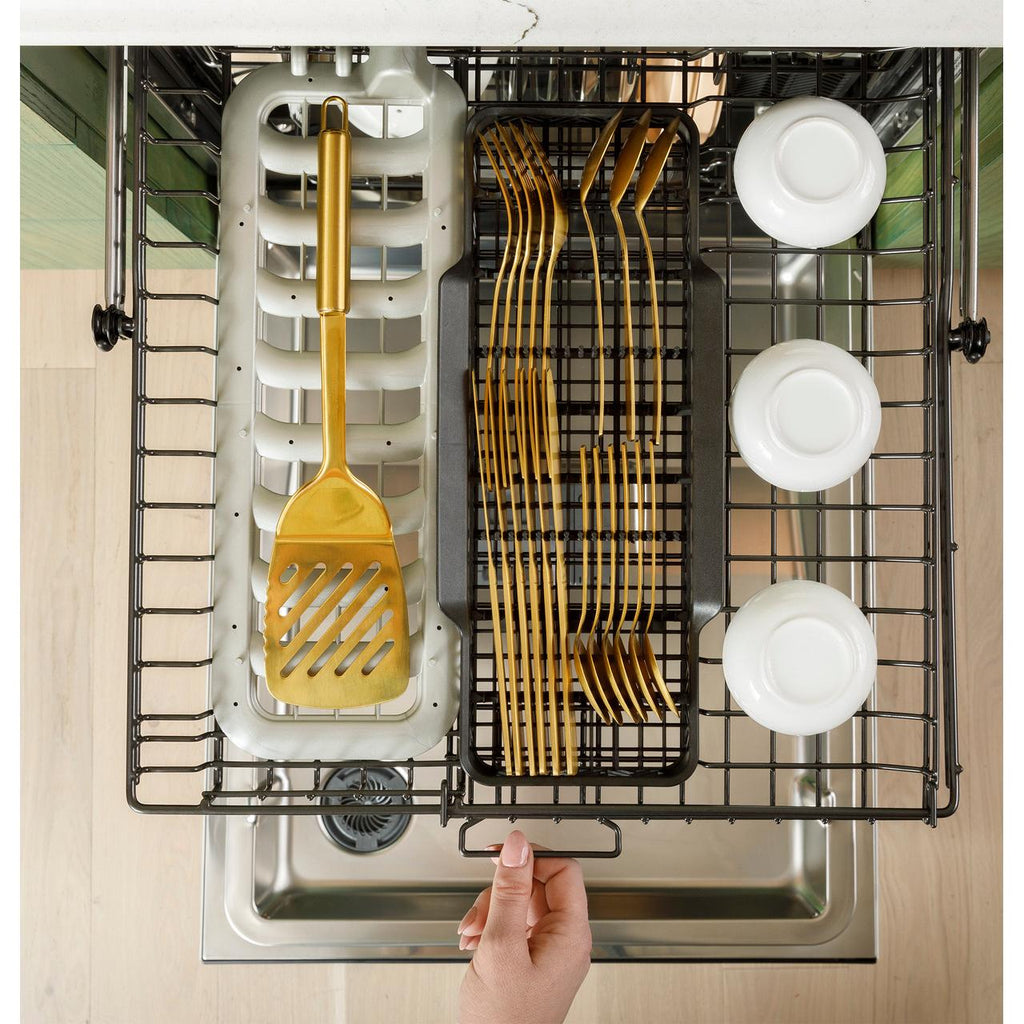

CUSTOMFIT TOP RACK WITH ULTRA WASH.
Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.

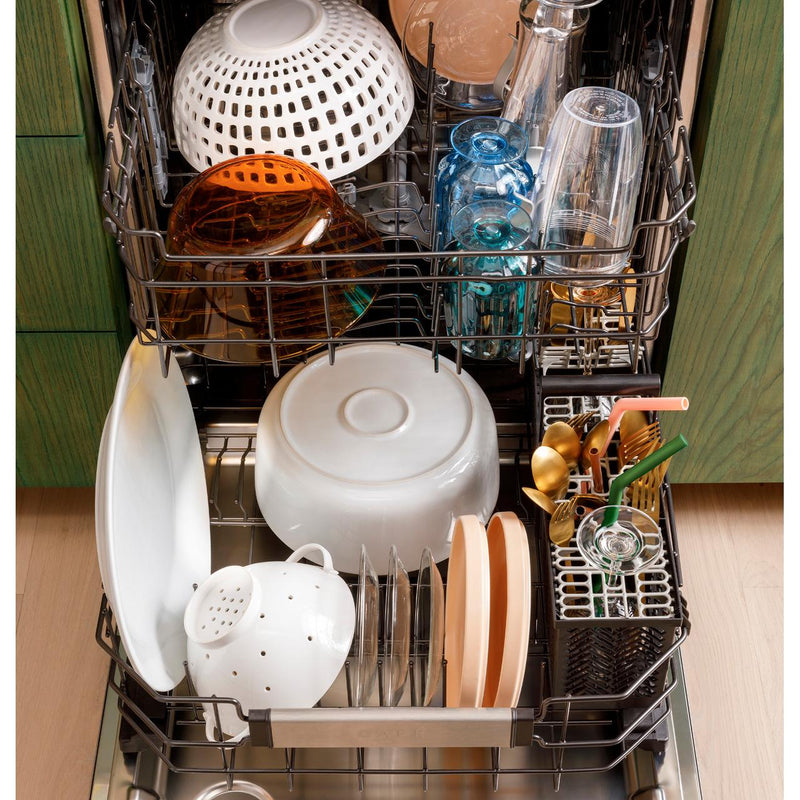

CUSTOMFIT BASKET WITH ULTRA WASH
Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.

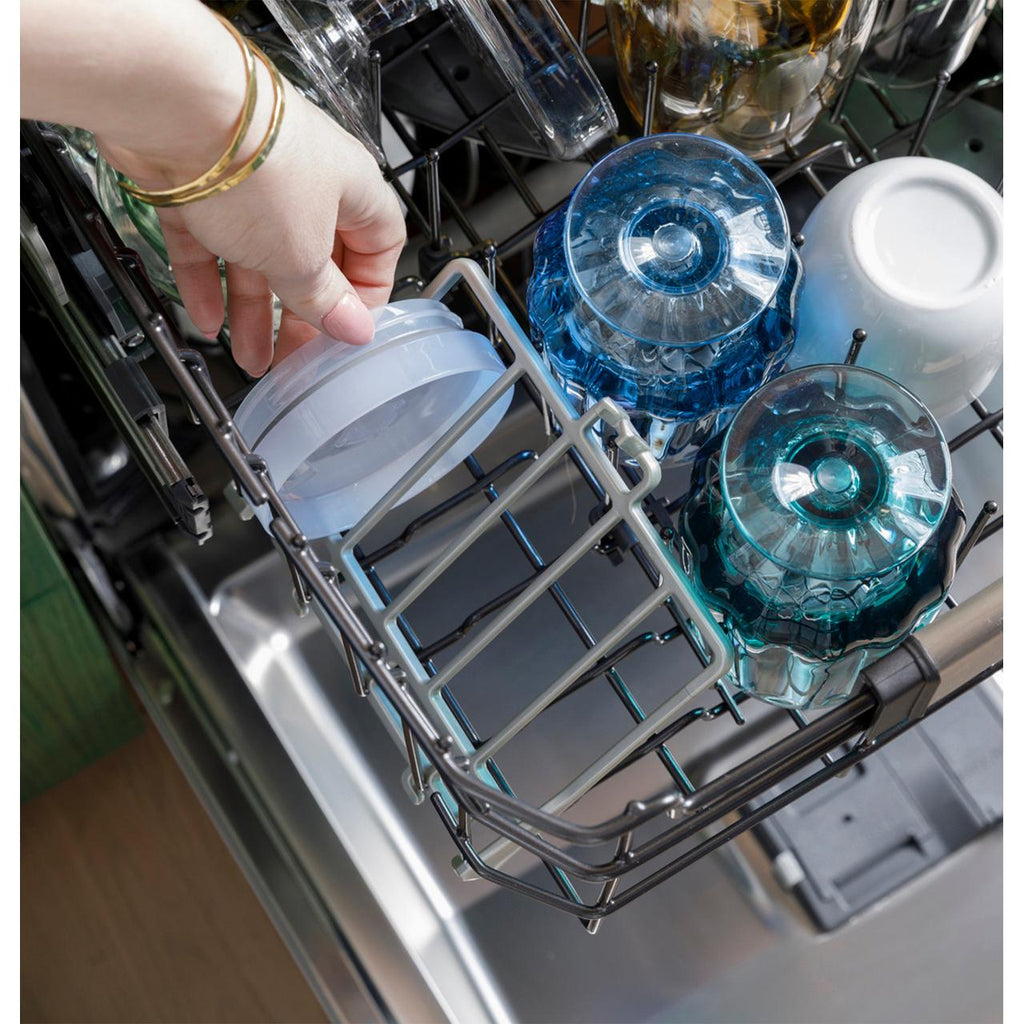

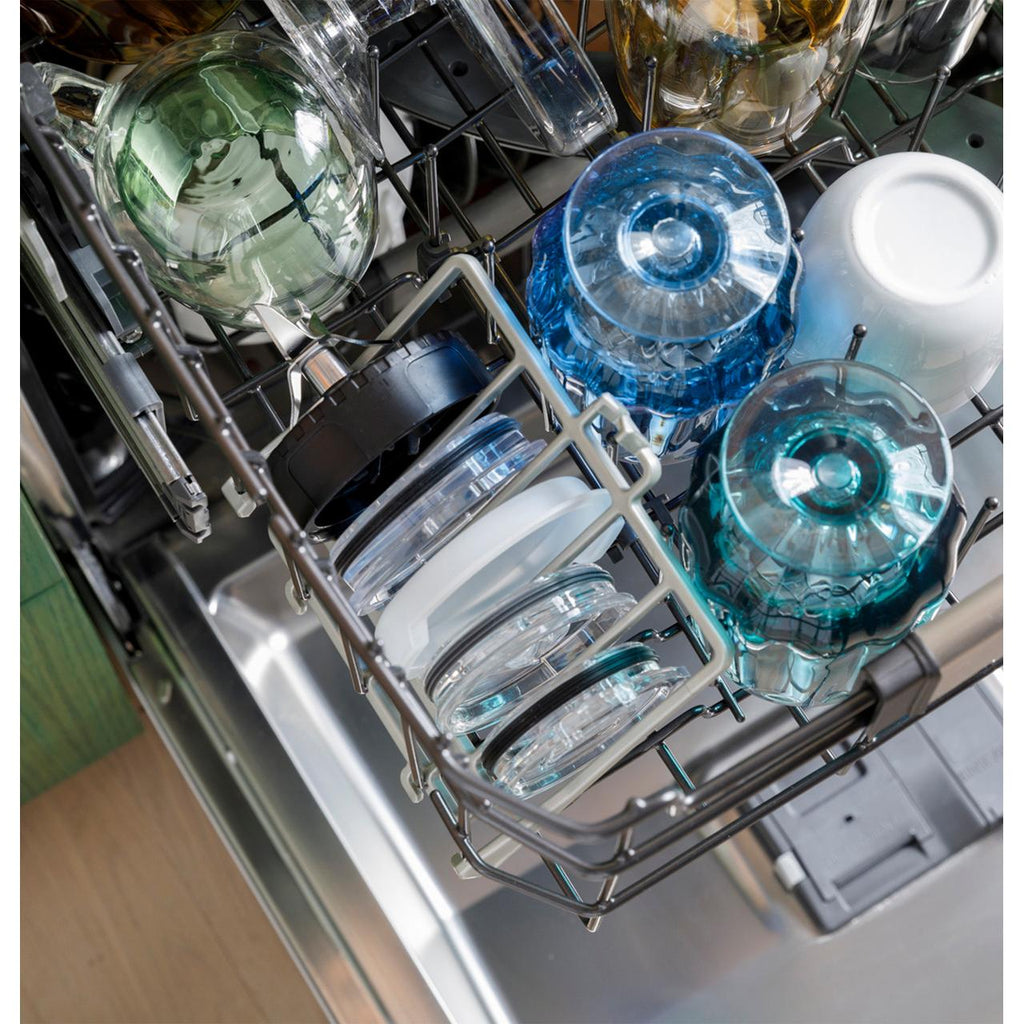

CUSTOMFIT LID CADDY
Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.
SMART FEATURES POWERED BY SMARTHQ™
Built-in WiFi and the SmartHQ™ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.
Specifications
General
Series Name
800 Series
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
39 dB
Cycle Information
Number of Cycles
6
Wash Cycles
• Auto Wash
• Cookware
• Normal
• Gentle
• Express
• Cascade Platinum Plus (on app)
• Cookware
• Normal
• Gentle
• Express
• Cascade Platinum Plus (on app)

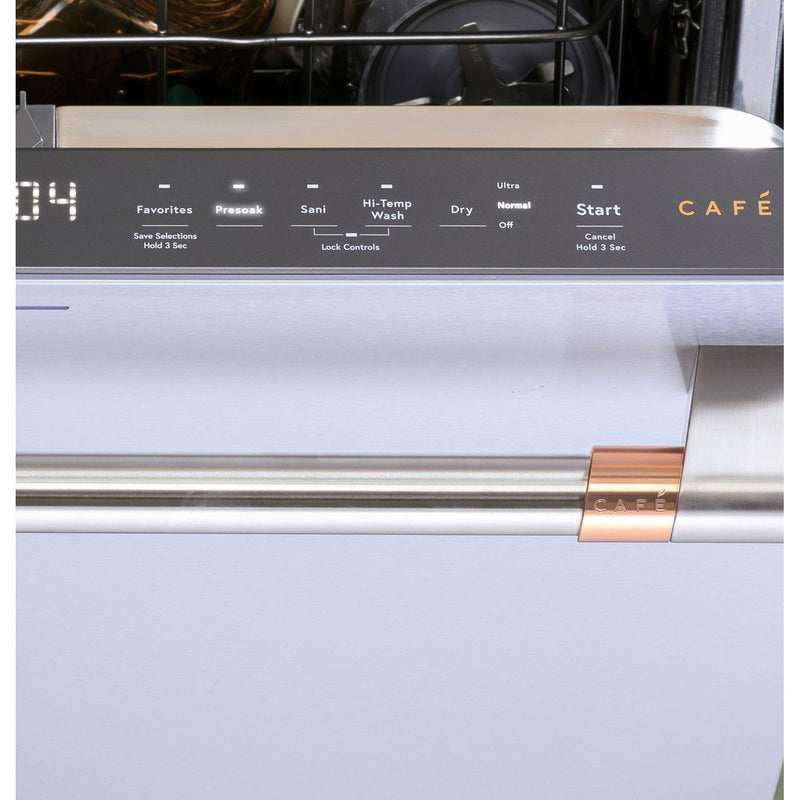

Options
• Delay Start 1-12 Hr.
• Bottle Wash (on app)
• Wash Zones/Half Load (on app)
• Favorites (on app)
• WiFi/Remote Enabled
• Sabbath Mode
• Start/Cancel
• Favorites
• Presoak + Sanitize (Certified to NSF Standard 184)
• Hi-Temp Wash
• Silverware Wash
• Heated Dry Off
• Normal Dry
• Ultra Dry
• Lock Controls
• Bottle Wash (on app)
• Wash Zones/Half Load (on app)
• Favorites (on app)
• WiFi/Remote Enabled
• Sabbath Mode
• Start/Cancel
• Favorites
• Presoak + Sanitize (Certified to NSF Standard 184)
• Hi-Temp Wash
• Silverware Wash
• Heated Dry Off
• Normal Dry
• Ultra Dry
• Lock Controls
Features
Technologies
• 100% Filtration with Hard Food Disposer and Removable Filter
• Built-in Wi-Fi Connect
• Active Flood Protect
• Leak Defense with Active Flood Protect
• Assist/WiFI/Remote Enabled
• Built-in Wi-Fi Connect
• Active Flood Protect
• Leak Defense with Active Flood Protect
• Assist/WiFI/Remote Enabled
Delay Start Information
1-12 Hours
Delay Start
Yes
3rd Rack System
Yes
Control Lock
Yes
Filtration System
Yes
Wi-Fi
Yes
Additional Information
• Cycle Countdown with Bi-Color LED Status Light on door
• Cycle Progress Indicators: Clean/Sanitized/Smart
• Last Cycle Memory
• Audible End-of-Cycle Signal
• Dual Convection Ultra Dry
• Ultra/Normal/Off
• Fan Assist Dry
• Interior Lighting: 4 - Café Expression
• Latch: Pull with Handle
• Leveling System: 3 Point Leveling
• Racking Material: Nylon
• Showroom Power Mode
• Top Rack/3rd Rack: Washing, Sliding 3rd Rack w/ removable caddy
• Lower Rack:
• Ball-Tip Tines
• 1/2 fixed tines, 1/2 fold down tines
• 1 Rack handle
• Dispenser:
• Rinse Aid with Indicator and Adjustment
• Electronic Low Rinse Aid Sensor
• Rack Features:
• Lid Manager
• Ball-Tipped Tines
• Adjustable Upper Rack
• Full Extension Slides - Upper
• Cafe Flex Silverware Basket
• Upper Rack:
• Premium Height Adjustable
• Ball-Tip Tines
• 1/2 fixed tines, 1/2 fold-down tines
• Fixed tines with Bottle Jets
• 1 Rack handle
• Smooth Glide Upper Rack
• Lid Manager
• Wash Arms:
• 4 Wash Levels
• Lower
• Middle
• Upper
• 3rd Rack
• Bottle Jets
• Deep Clean Silverware Jets
• Wash System Features:
• Variable Speed Dual Pumps and Motors
• Bottle Jets (4)
• Middle Wash Arm
• Lower Wash Arm
• Automatic Temperature Control
• Drain Pump
• Hard Food Disposer with removable filter
• Deep Clean Silverware Jets
• 90+ Spray Jet Wash System
• Side Jets
• Hidden Heater
• Automatic HotStart
• Cycle Progress Indicators: Clean/Sanitized/Smart
• Last Cycle Memory
• Audible End-of-Cycle Signal
• Dual Convection Ultra Dry
• Ultra/Normal/Off
• Fan Assist Dry
• Interior Lighting: 4 - Café Expression
• Latch: Pull with Handle
• Leveling System: 3 Point Leveling
• Racking Material: Nylon
• Showroom Power Mode
• Top Rack/3rd Rack: Washing, Sliding 3rd Rack w/ removable caddy
• Lower Rack:
• Ball-Tip Tines
• 1/2 fixed tines, 1/2 fold down tines
• 1 Rack handle
• Dispenser:
• Rinse Aid with Indicator and Adjustment
• Electronic Low Rinse Aid Sensor
• Rack Features:
• Lid Manager
• Ball-Tipped Tines
• Adjustable Upper Rack
• Full Extension Slides - Upper
• Cafe Flex Silverware Basket
• Upper Rack:
• Premium Height Adjustable
• Ball-Tip Tines
• 1/2 fixed tines, 1/2 fold-down tines
• Fixed tines with Bottle Jets
• 1 Rack handle
• Smooth Glide Upper Rack
• Lid Manager
• Wash Arms:
• 4 Wash Levels
• Lower
• Middle
• Upper
• 3rd Rack
• Bottle Jets
• Deep Clean Silverware Jets
• Wash System Features:
• Variable Speed Dual Pumps and Motors
• Bottle Jets (4)
• Middle Wash Arm
• Lower Wash Arm
• Automatic Temperature Control
• Drain Pump
• Hard Food Disposer with removable filter
• Deep Clean Silverware Jets
• 90+ Spray Jet Wash System
• Side Jets
• Hidden Heater
• Automatic HotStart
Electrical Information
Information
• 120 V
• 60 Hz
• 10.2 A
• 60 Hz
• 10.2 A
Certifications and Approvals
Energy Star Certified
Yes
UL Listed
Yes
Information
OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Accessories
Included
CXADTH1PVSS: Brushed Stainless Steel Kit - 1 handle
Optional
• CXADTH1PVBZ: Brushed Bronze Kit - 1 handle
• CXADTH1PVBT: Brushed Black Kit - 1 handle
• CXADTH1PVCU: Brushed Copper Kit - 1 handle
• CXADTH1PVFB: Flat Black Kit - 1 handle
• CXCG1K0PMCG: Brushed Brass Kit - 6 knobs
• CXADTH1PVBT: Brushed Black Kit - 1 handle
• CXADTH1PVCU: Brushed Copper Kit - 1 handle
• CXADTH1PVFB: Flat Black Kit - 1 handle
• CXCG1K0PMCG: Brushed Brass Kit - 6 knobs
Dimensions
Class Width
24"
Width
23.75 inch(es) / 60.32 cm
Height (Min.)
34 inch(es) / 86.36 cm
Depth (Without Handle)
24 inch(es) / 60.96 cm
Depth (Including Handle)
24 inch(es) / 60.96 cm
Weight
124.01 lb(s) / 56.25 kg
Additional Dimensions
Height w/Legs Extended - Maximum Height: 34.625 in
Shipping Dimensions
Width
24.5 inch(es) / 62.23 cm
Height
35.3 inch(es) / 89.66 cm
Depth
27.9 inch(es) / 70.87 cm
Weight
137 lb(s) / 62.14 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691914594
