Features

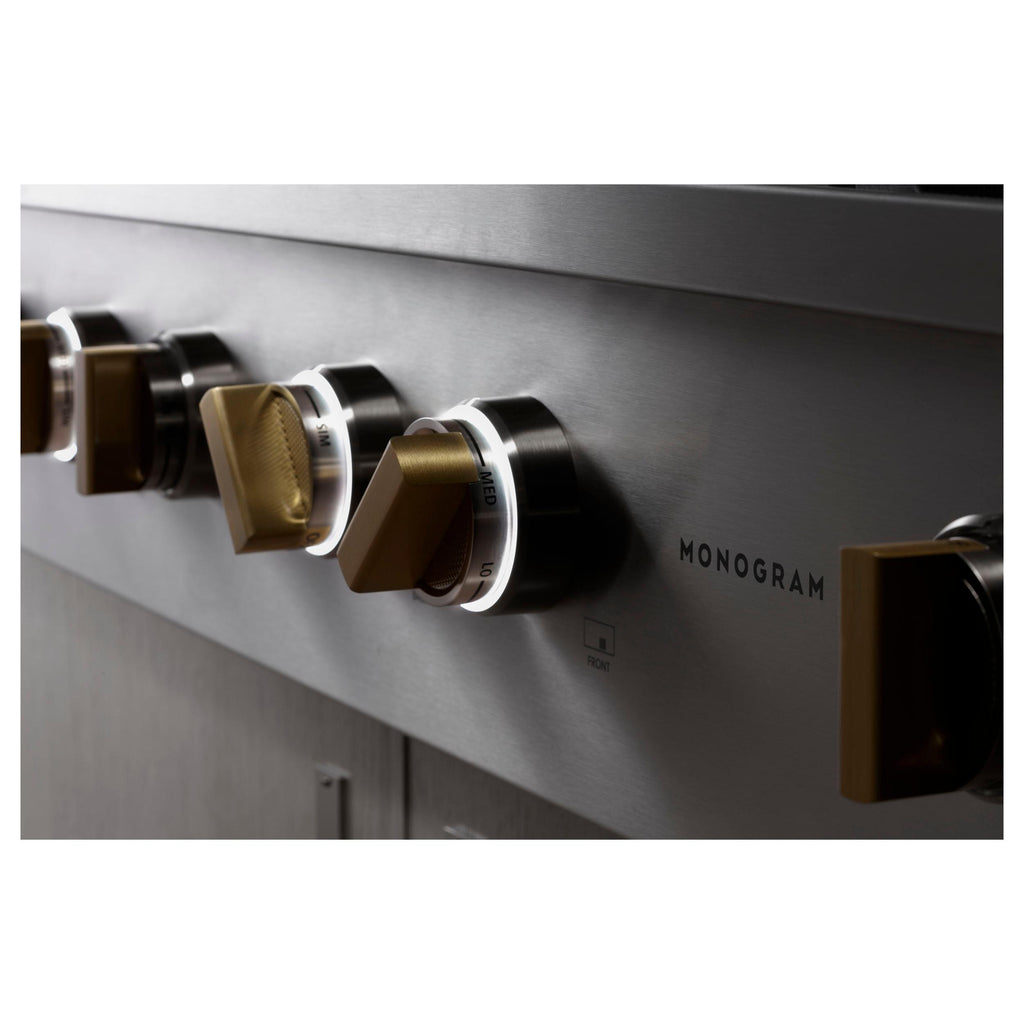

RING-LIT KNOBS
Delivering a modern approach to accent lighting, the rings illuminate to indicate when a burner is in use.

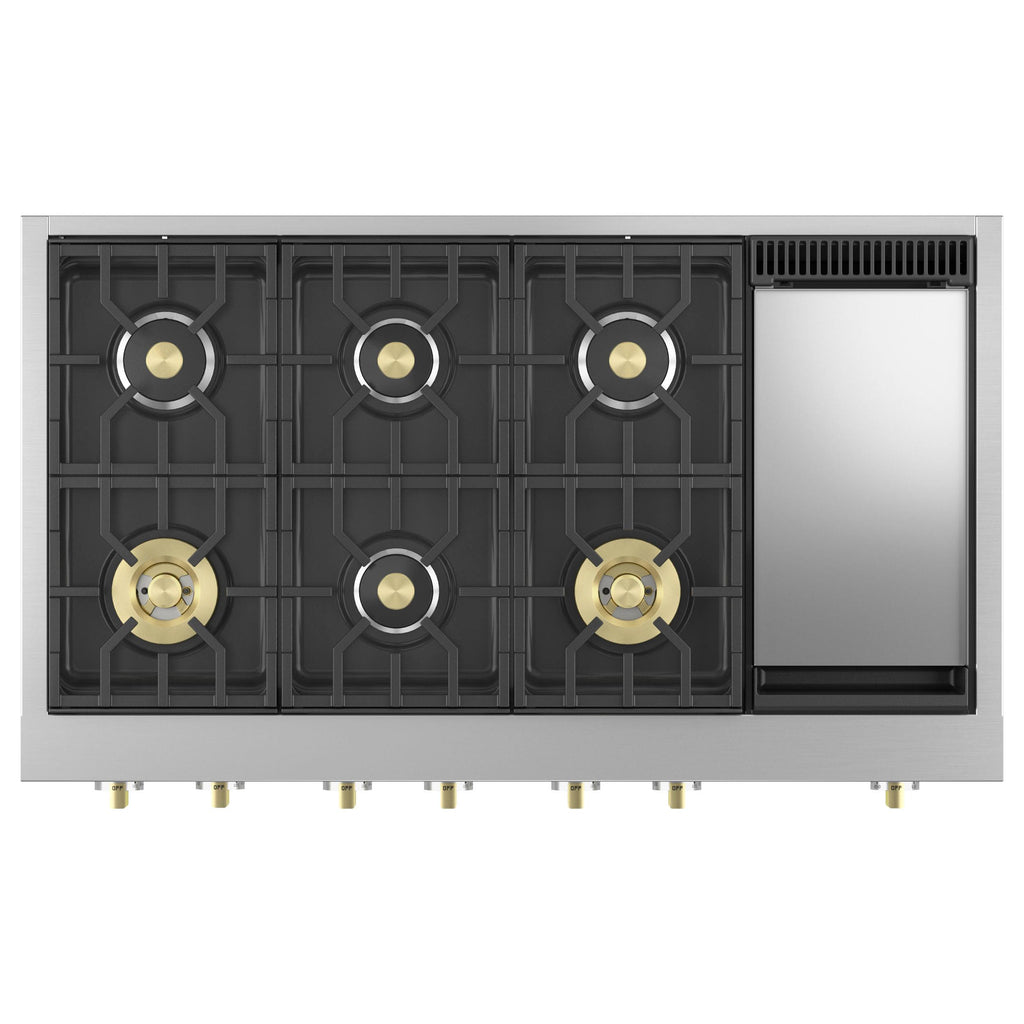

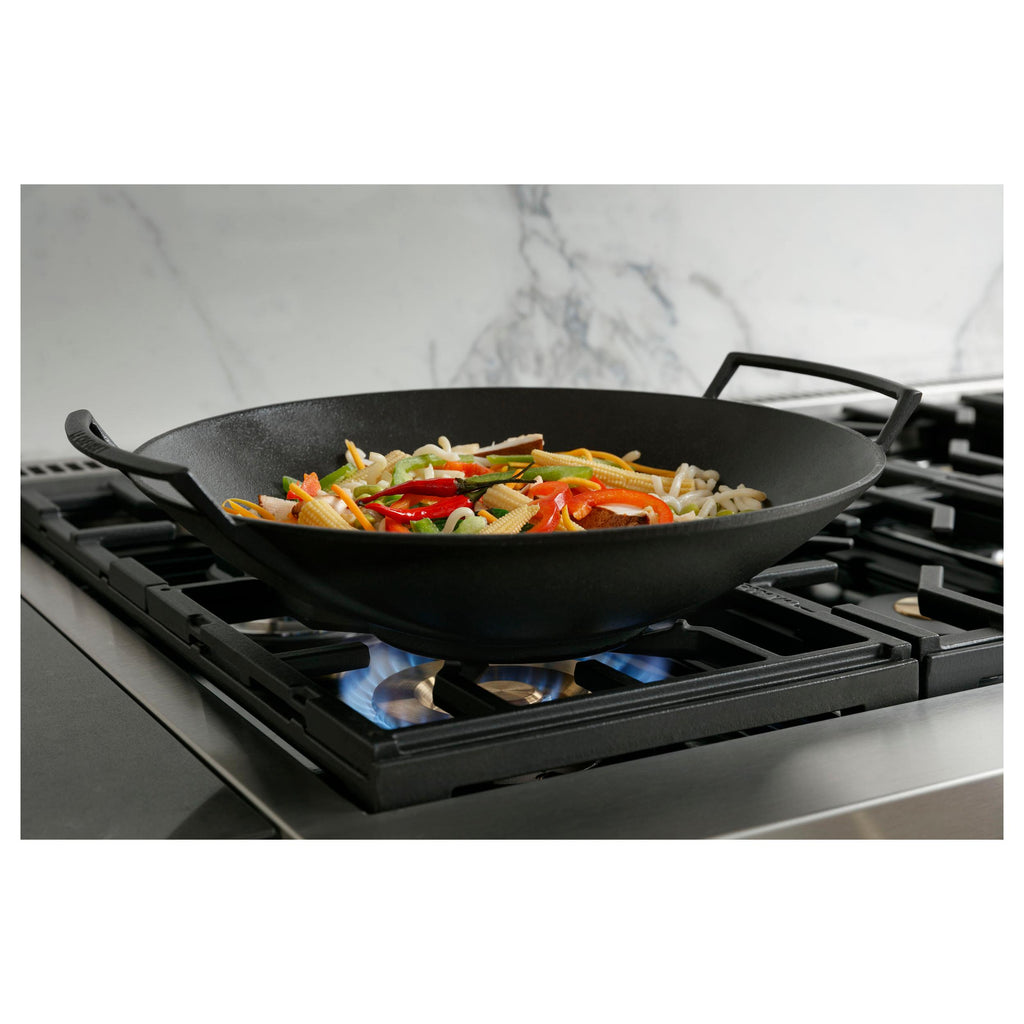

3-PIECE GRATES WITH REVERSIBLE WOK FEATURE
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks.

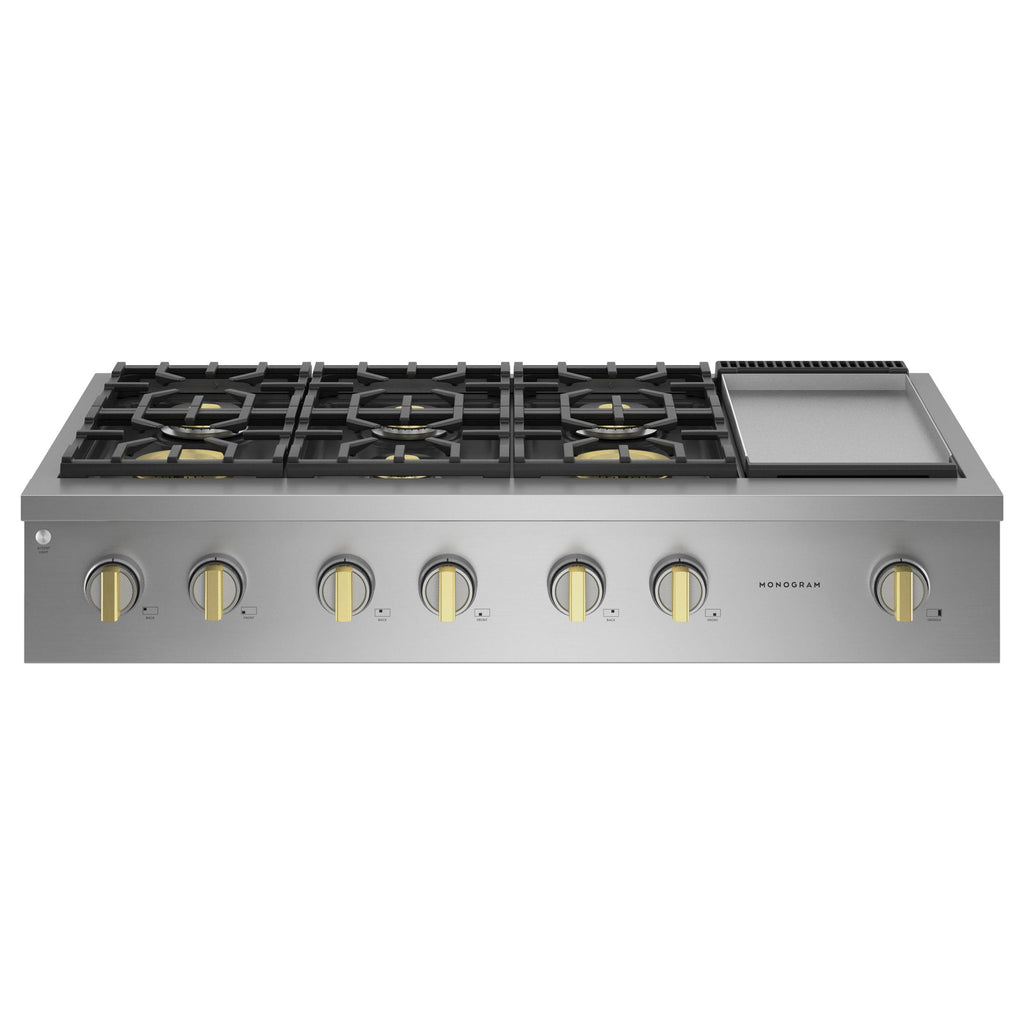

SEAMLESS STAINLESS TOP FRAME
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at.

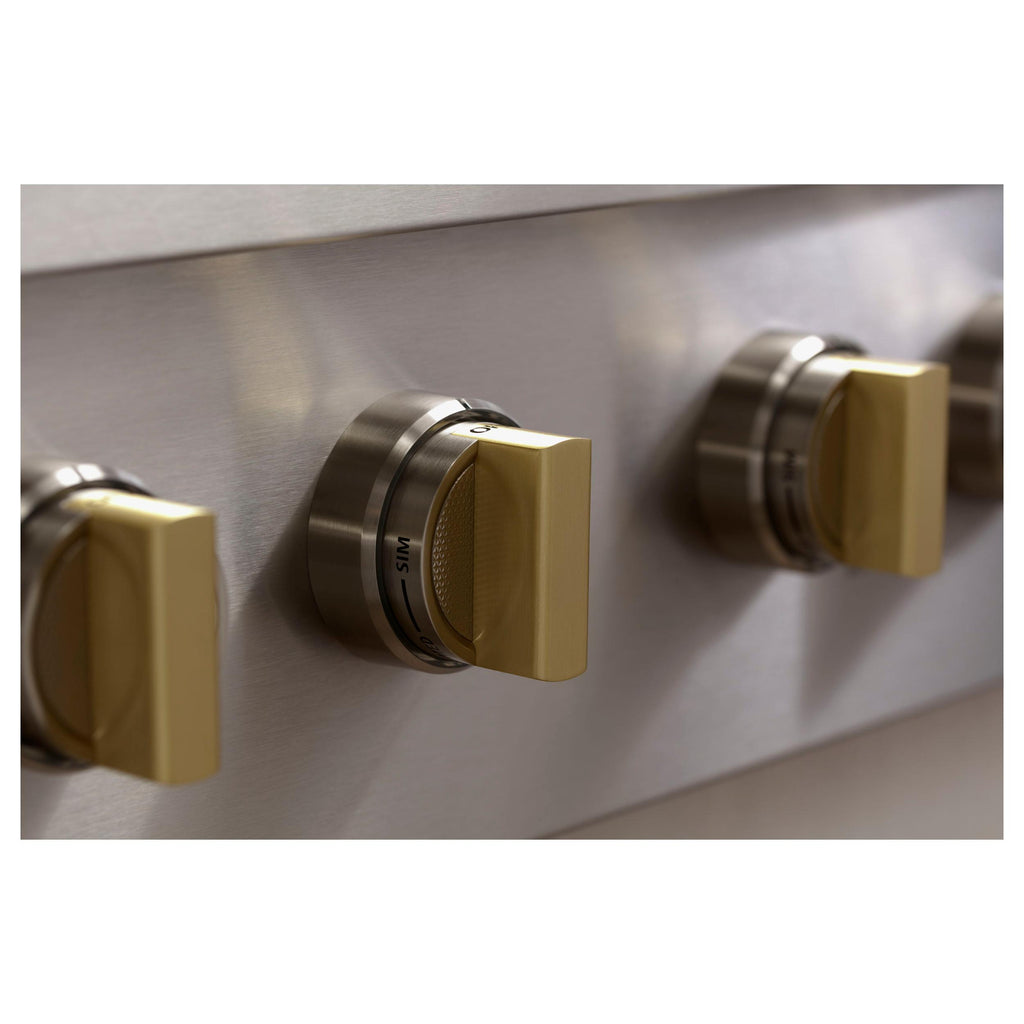

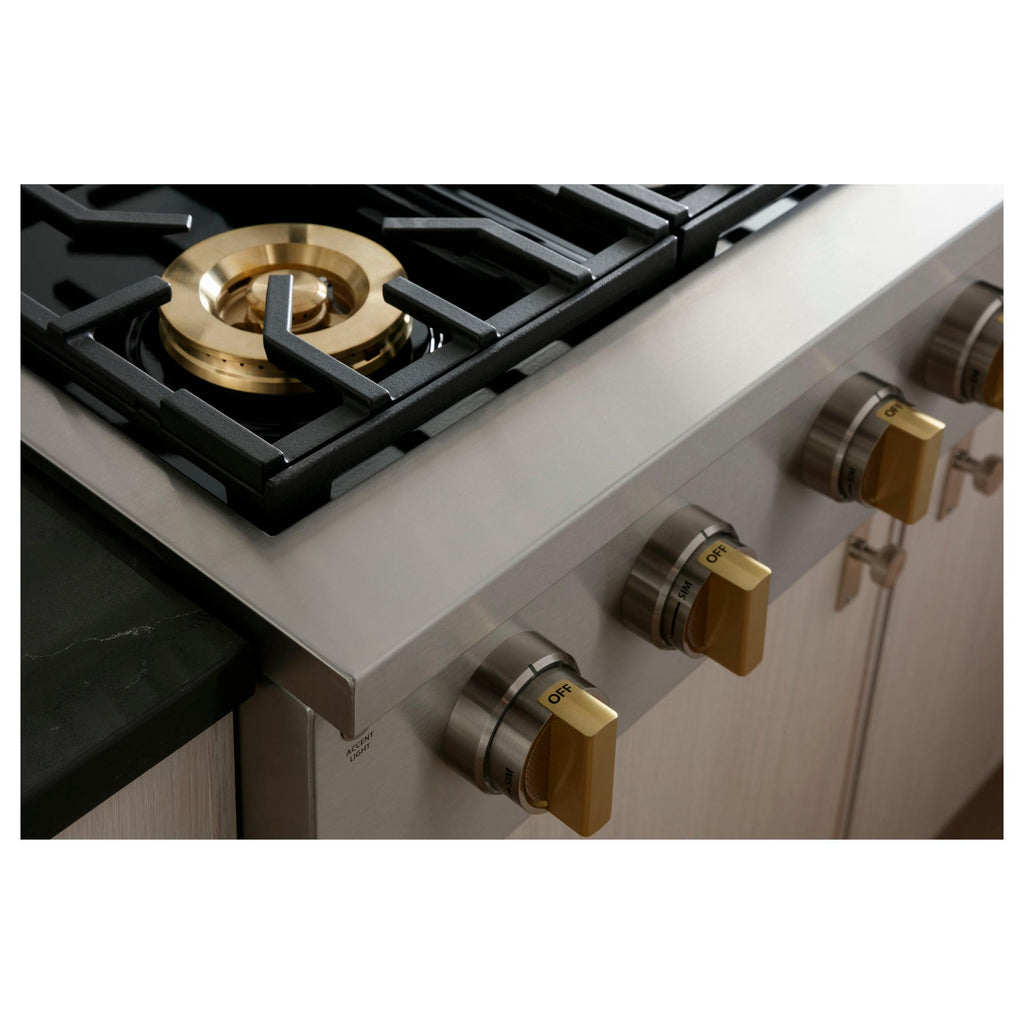

SOLID BRASS BLADES ON PRECISION MACHINED KNOBS
With an unmatched attention to detail, all knobs on the Monogram Pro ranges and range tops come with solid brass accents.
Additional Features
ADA COMPLIANT
Designed to be easily accessible.
Specifications
General
Series Name
Design Style: Statement Collection
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Rangetop
Cooktop
Burners/Elements
6
Power Output
• Front Left Burner: 23,000-BTU
• Back Left Burner: 18,000-BTU
• Second From Left Front Burner: 15,000-BTU
• Second From Left Back Burner: 15,000-BTU
• Third From Left Front Burner: 23,000-BTU
• Third From Left Back Burner: 18,000-BTU
• Griddle: 18,000-BTU
• Back Left Burner: 18,000-BTU
• Second From Left Front Burner: 15,000-BTU
• Second From Left Back Burner: 15,000-BTU
• Third From Left Front Burner: 23,000-BTU
• Third From Left Back Burner: 18,000-BTU
• Griddle: 18,000-BTU
Burners
Sealed
Other
Griddle
Surface Features
• 2 Sealed, Dual Ring 4 Sealed, Dual Flame Stacked with Removable Brass Accents
• Stainless Steel and Aluminum Clad Thermostatically Controlled Griddle
• Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
• Stainless Steel and Aluminum Clad Thermostatically Controlled Griddle
• Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Features
Clock
No
Digital Display
No
Additional Information
• Control Knobs: Diecast Metallic (Included) Stainless Steel with Brass Accents
• Control Location: Upfront
• Extra Low Simmer: All Burners - Adjustable
• Burner Indicator Light

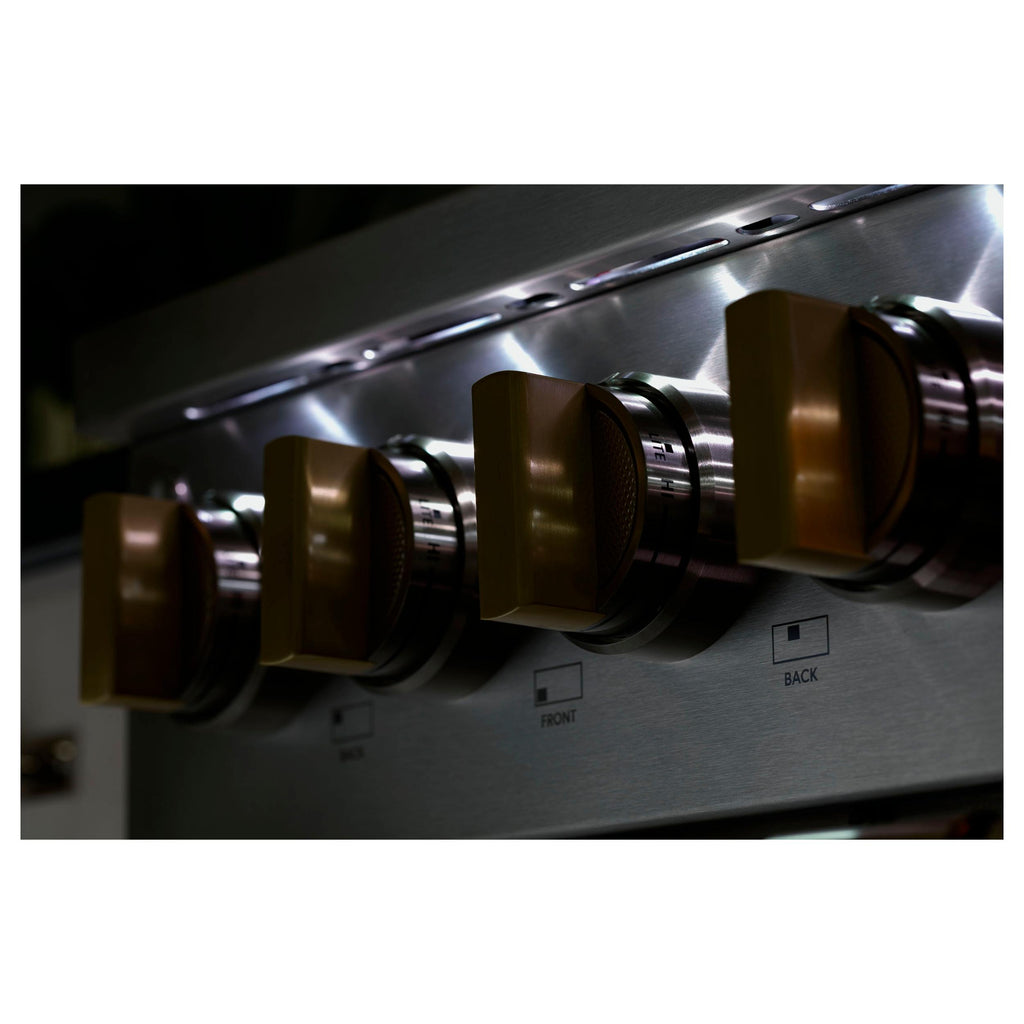

• Lighting: LED Bullnose Task Lighting
• Removable Drip Tray Liners: (1) Beneath Griddle
• Control Location: Upfront
• Extra Low Simmer: All Burners - Adjustable
• Burner Indicator Light
• Lighting: LED Bullnose Task Lighting
• Removable Drip Tray Liners: (1) Beneath Griddle
Electrical Information
Information
Volts/Hertz/Amps: 120 V/60 Hz/15 A
Certifications and Approvals
ADA Compliant
Yes
Information
cCSAus
Accessories
Included

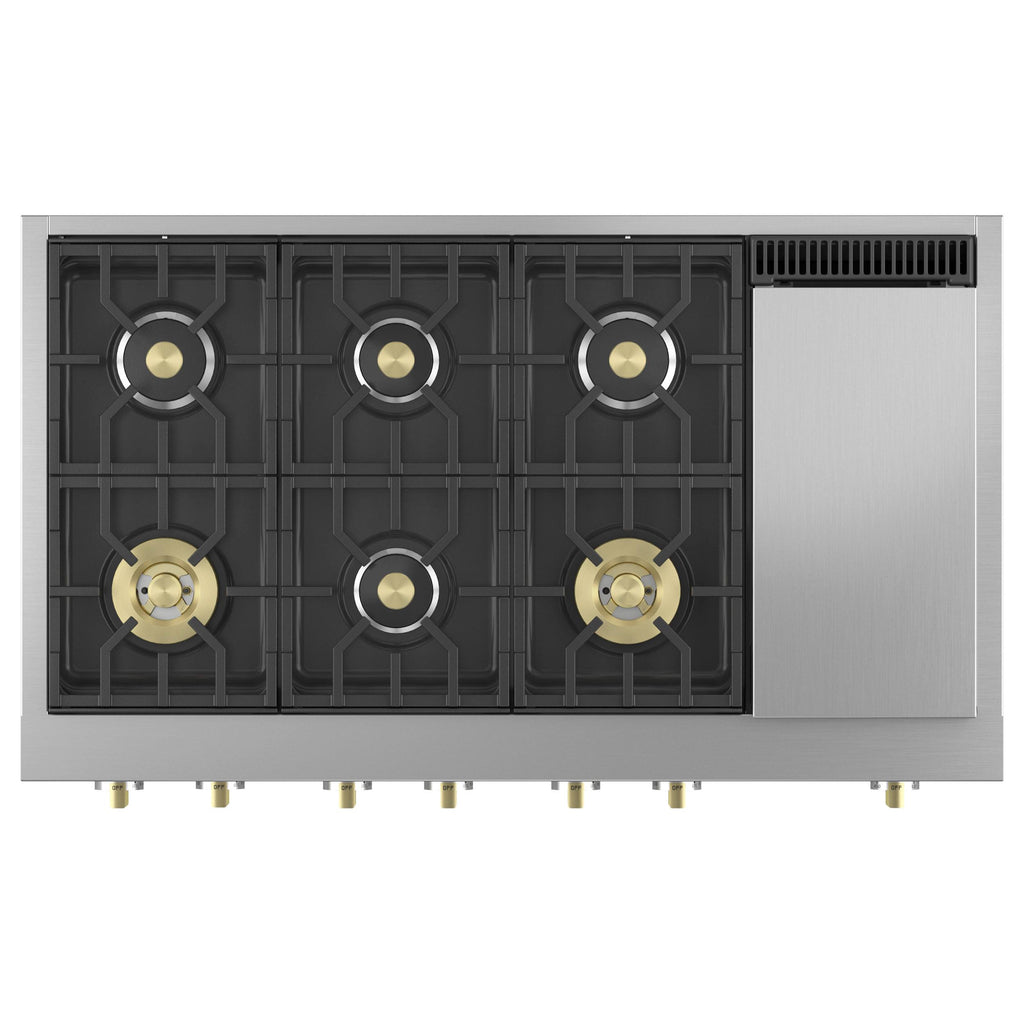

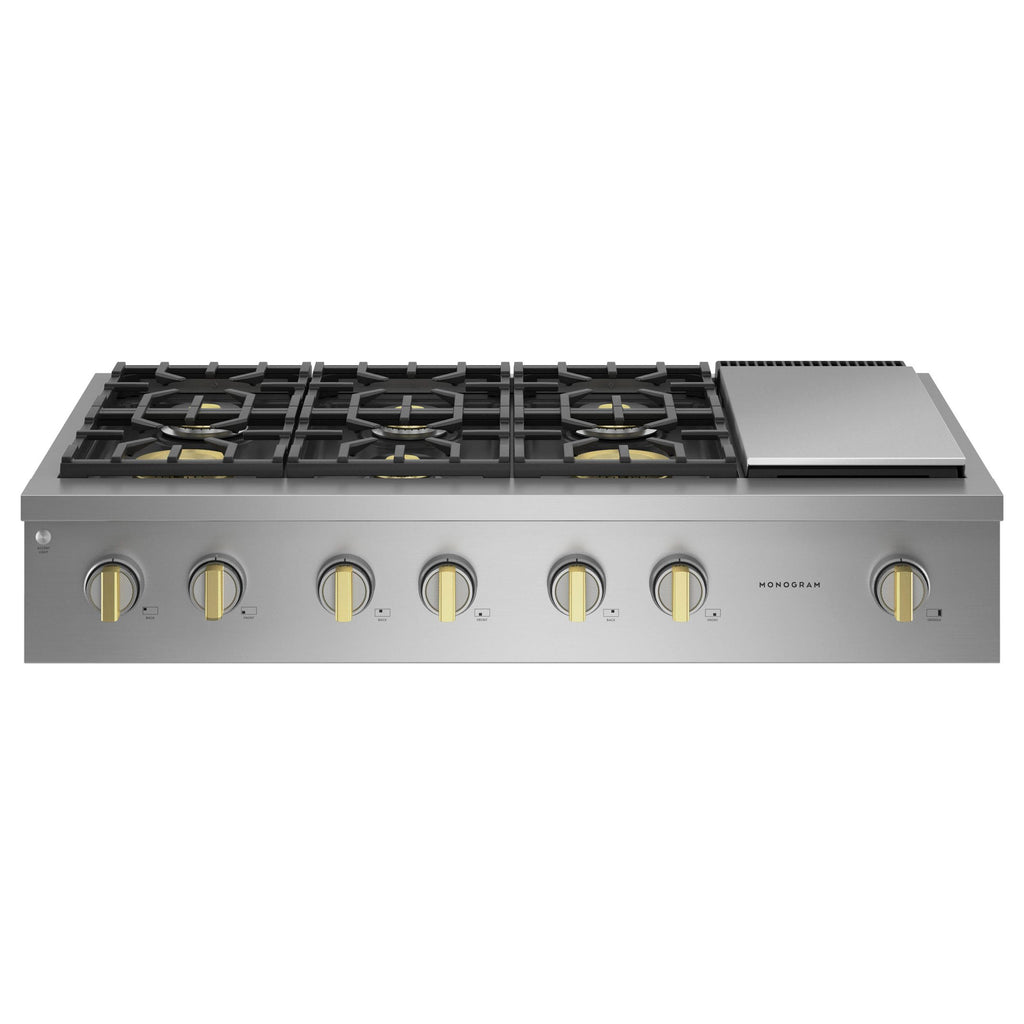

• Stainless Steel No-Mark Griddle/Grill Cover
• Factory-installed island backguard
• LP Conversion Kit
• Factory-installed island backguard
• LP Conversion Kit
Optional
• 48" Monogram Knob Kit: ZXPR48KKTSS (SS, qty. 11)
• High Altitude Kit: WB28K10553
• Optional 2" stainless steel backsplash: UX12B36PSS
• 30"-36" adjustable stainless steel backsplash with warming shelf: UXADBS48PSS
• Optional Grill Accessory (Cast Iron): UXPRRGG
• High Altitude Kit: WB28K10553
• Optional 2" stainless steel backsplash: UX12B36PSS
• 30"-36" adjustable stainless steel backsplash with warming shelf: UXADBS48PSS
• Optional Grill Accessory (Cast Iron): UXPRRGG
Dimensions
Class Width
48" or More
Width
47.87 inch(es) / 121.60 cm
Height
8.5 inch(es) / 21.59 cm
Depth
27.5 inch(es) / 69.85 cm
Weight
170.99 lb(s) / 77.56 kg
Shipping Dimensions
Width
50.5 inch(es) / 128.27 cm
Height
19.3 inch(es) / 49.02 cm
Depth
34.7 inch(es) / 88.14 cm
Weight
227.01 lb(s) / 102.97 kg
Warranty
Warranty
• Limited 2-year entire appliance for parts and labor
• Limited 5-year for gas surface burners (parts only)
• See written warranty for full details
• Limited 5-year for gas surface burners (parts only)
• See written warranty for full details
UPC
UPC#
084691851219
